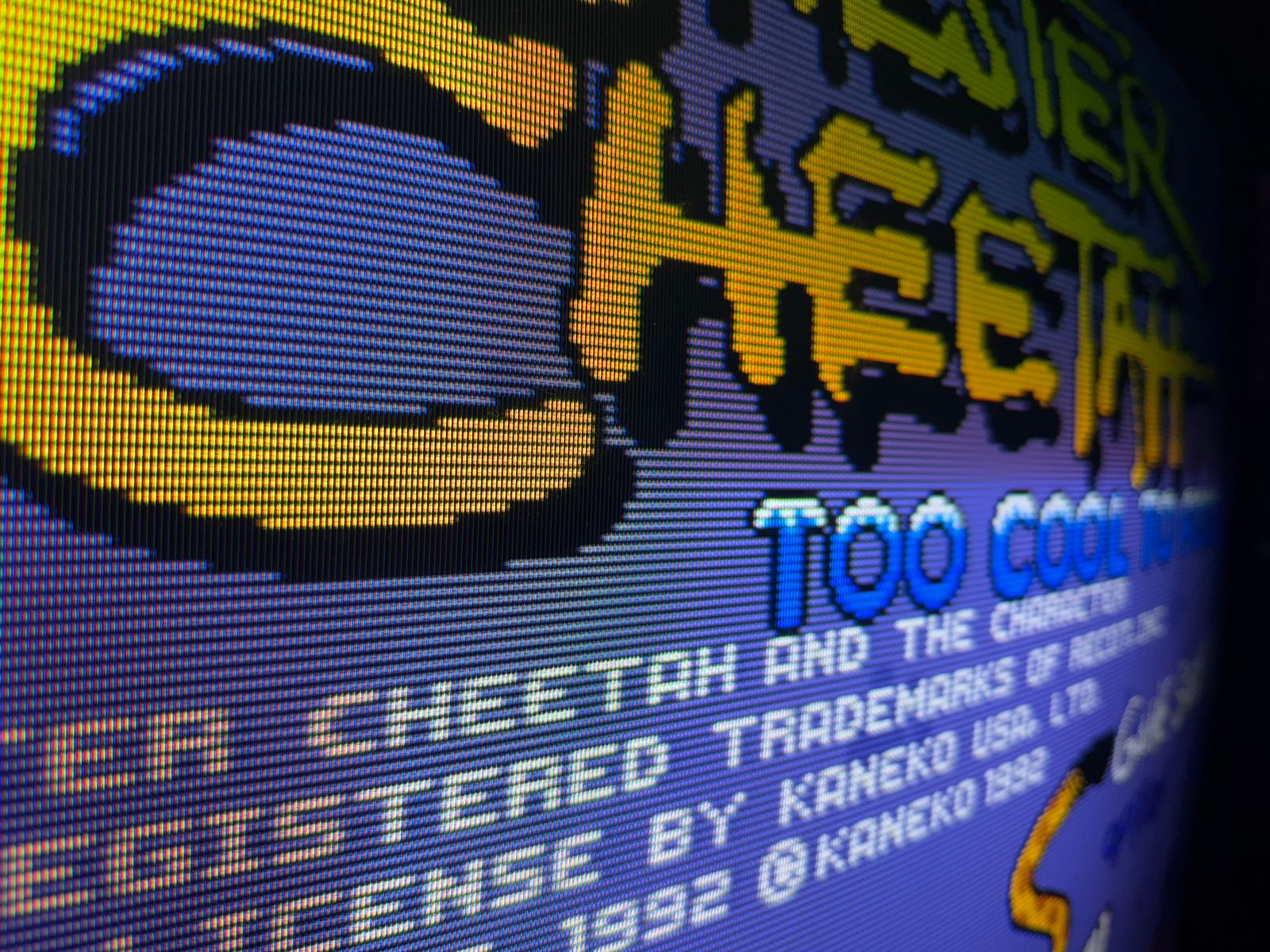

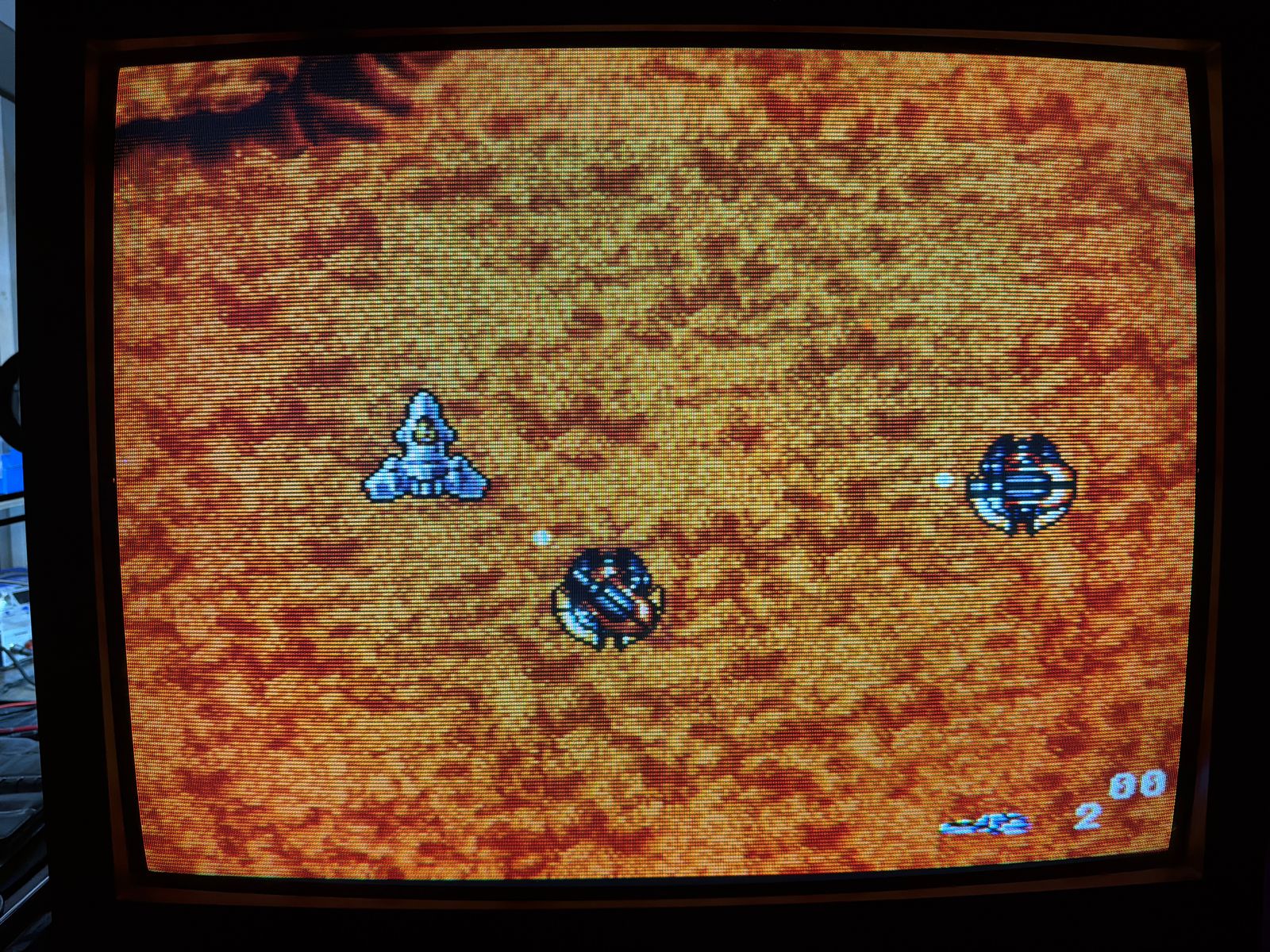

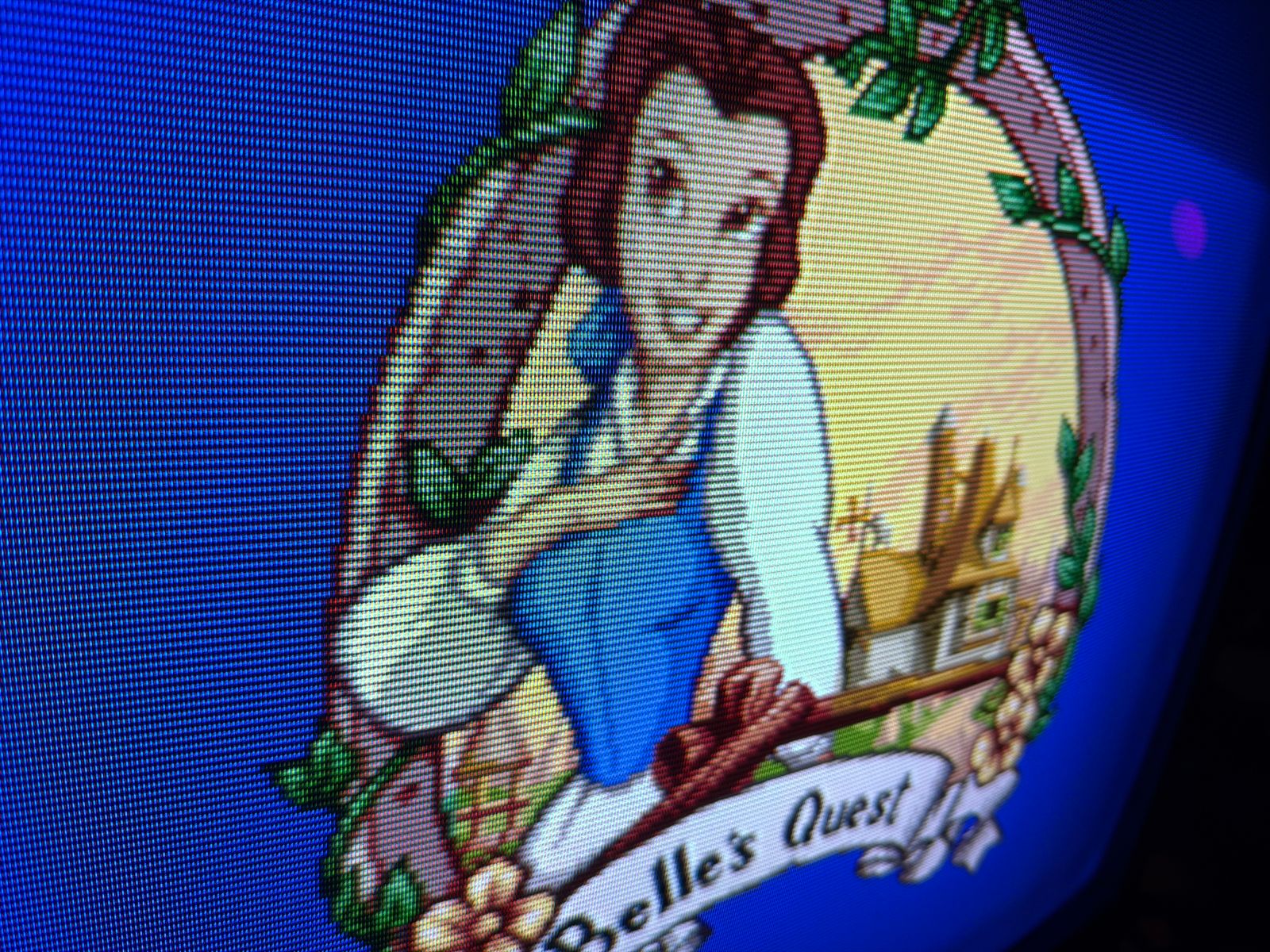

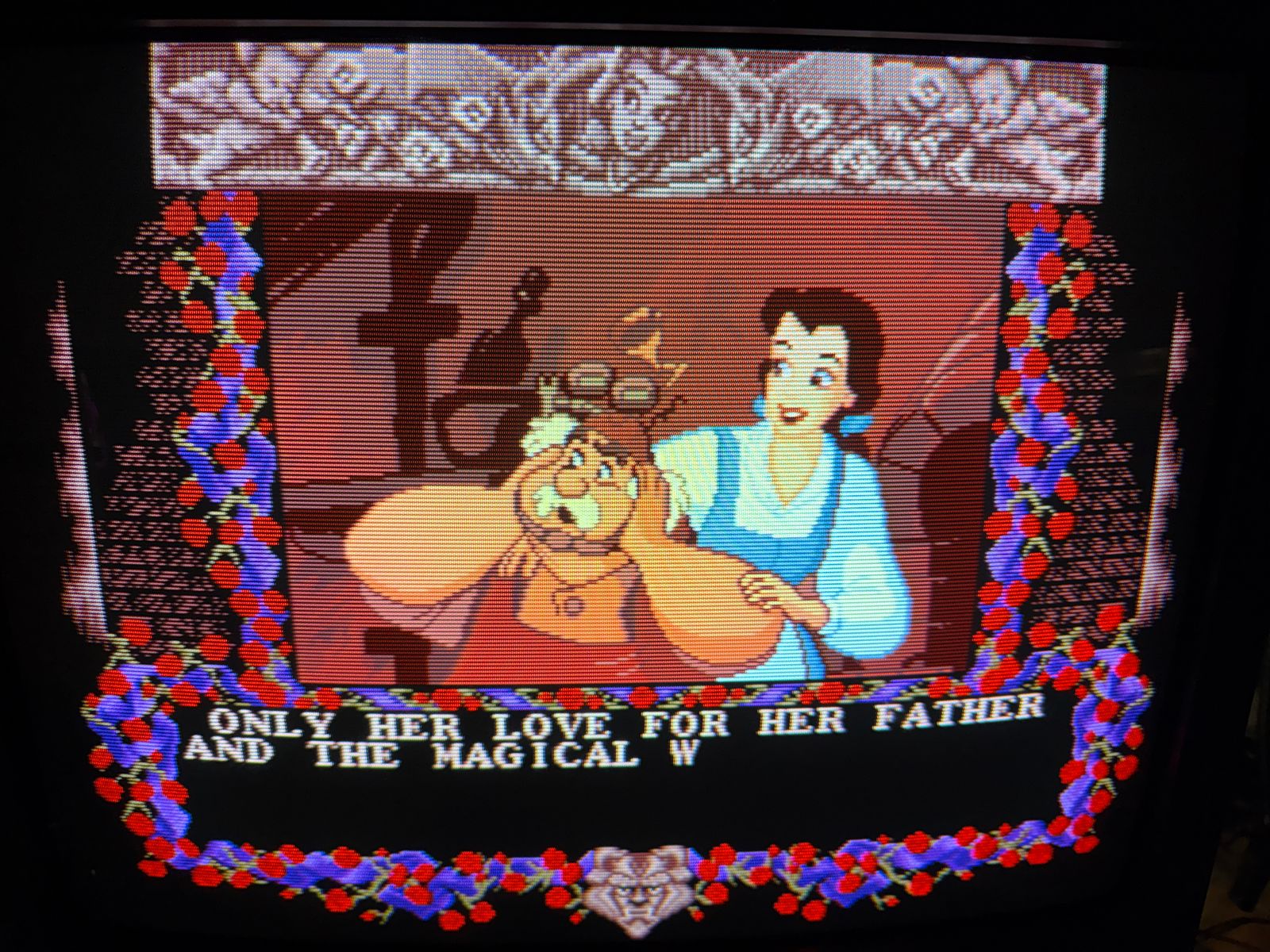

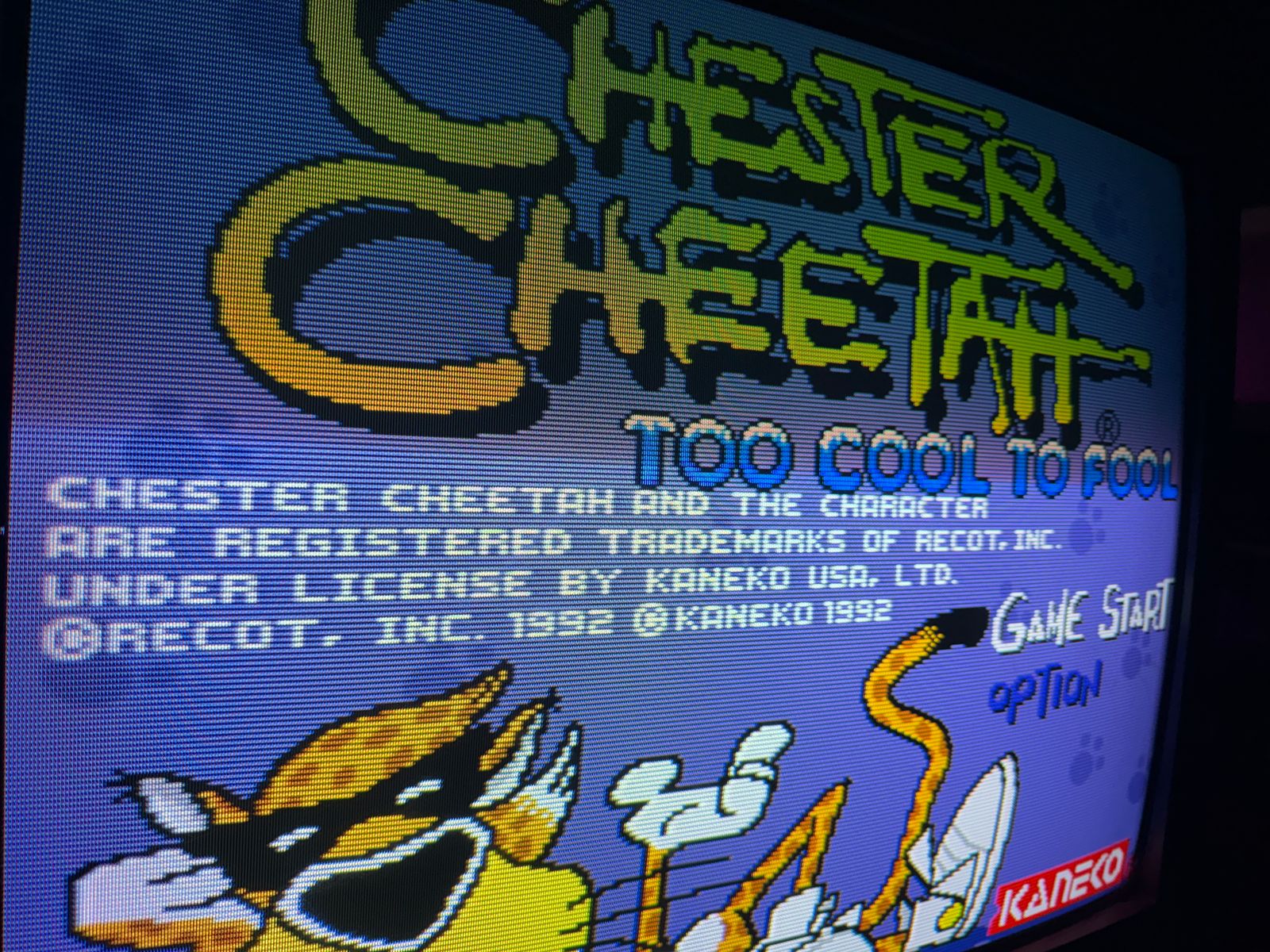

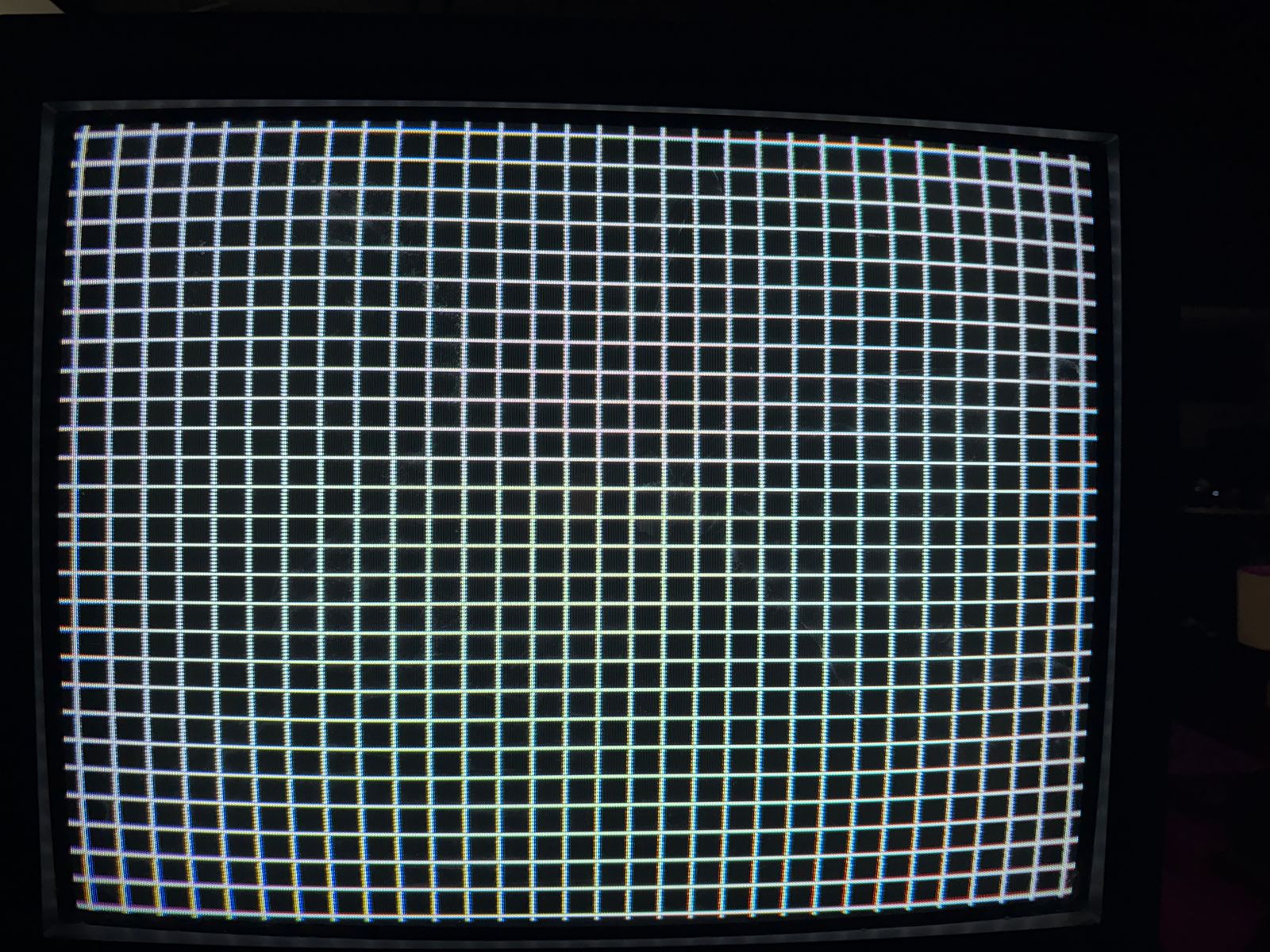

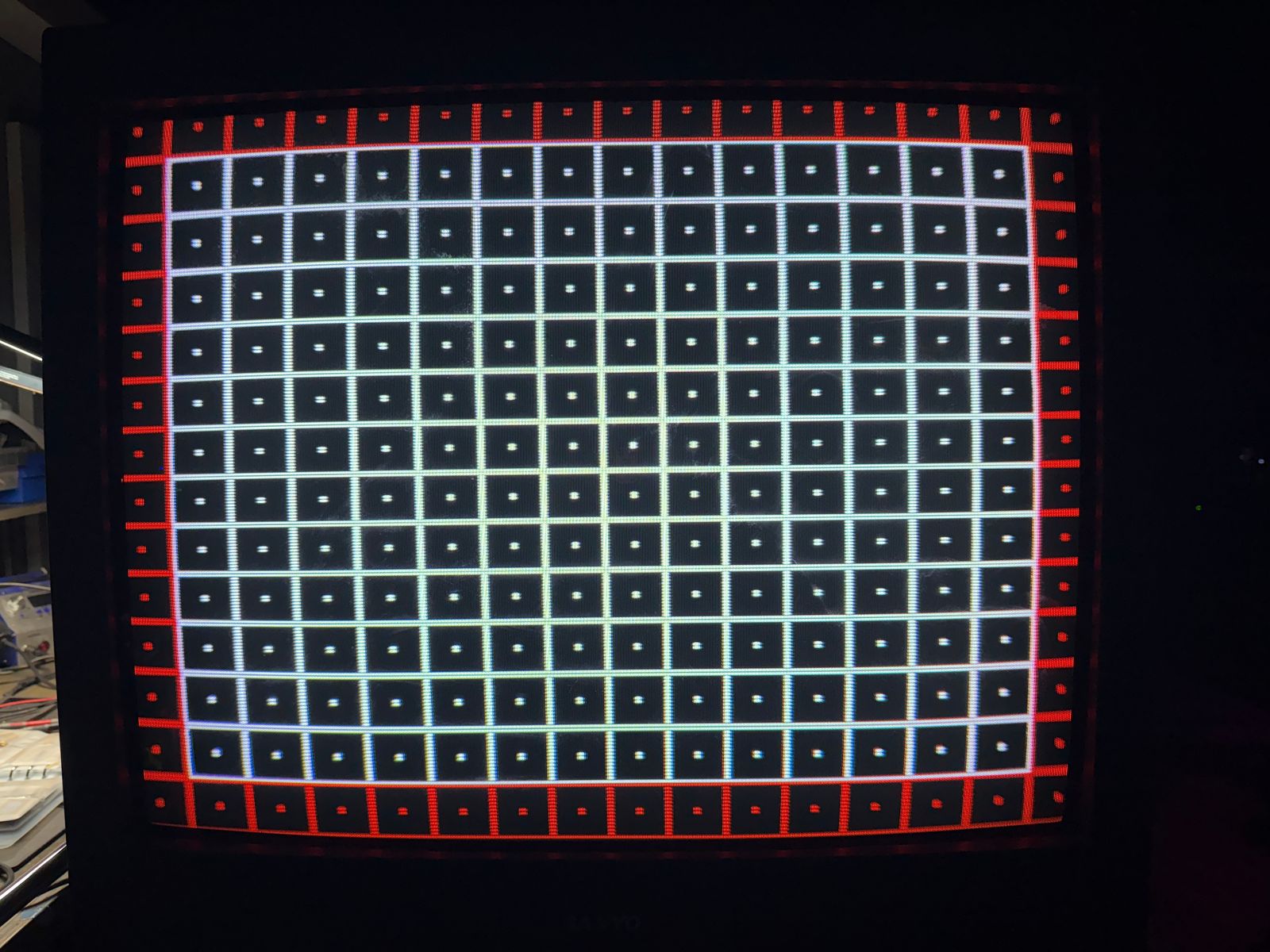

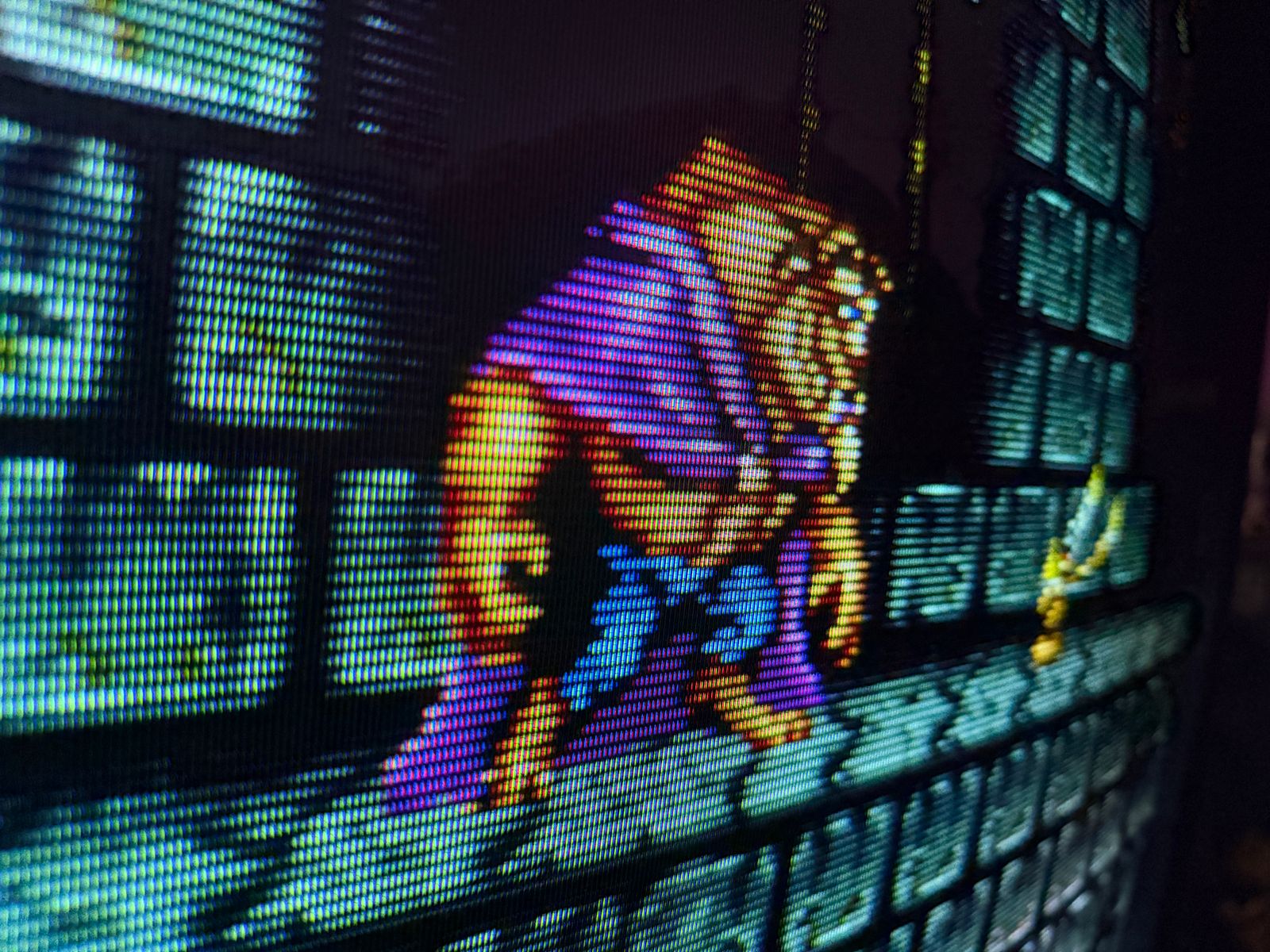

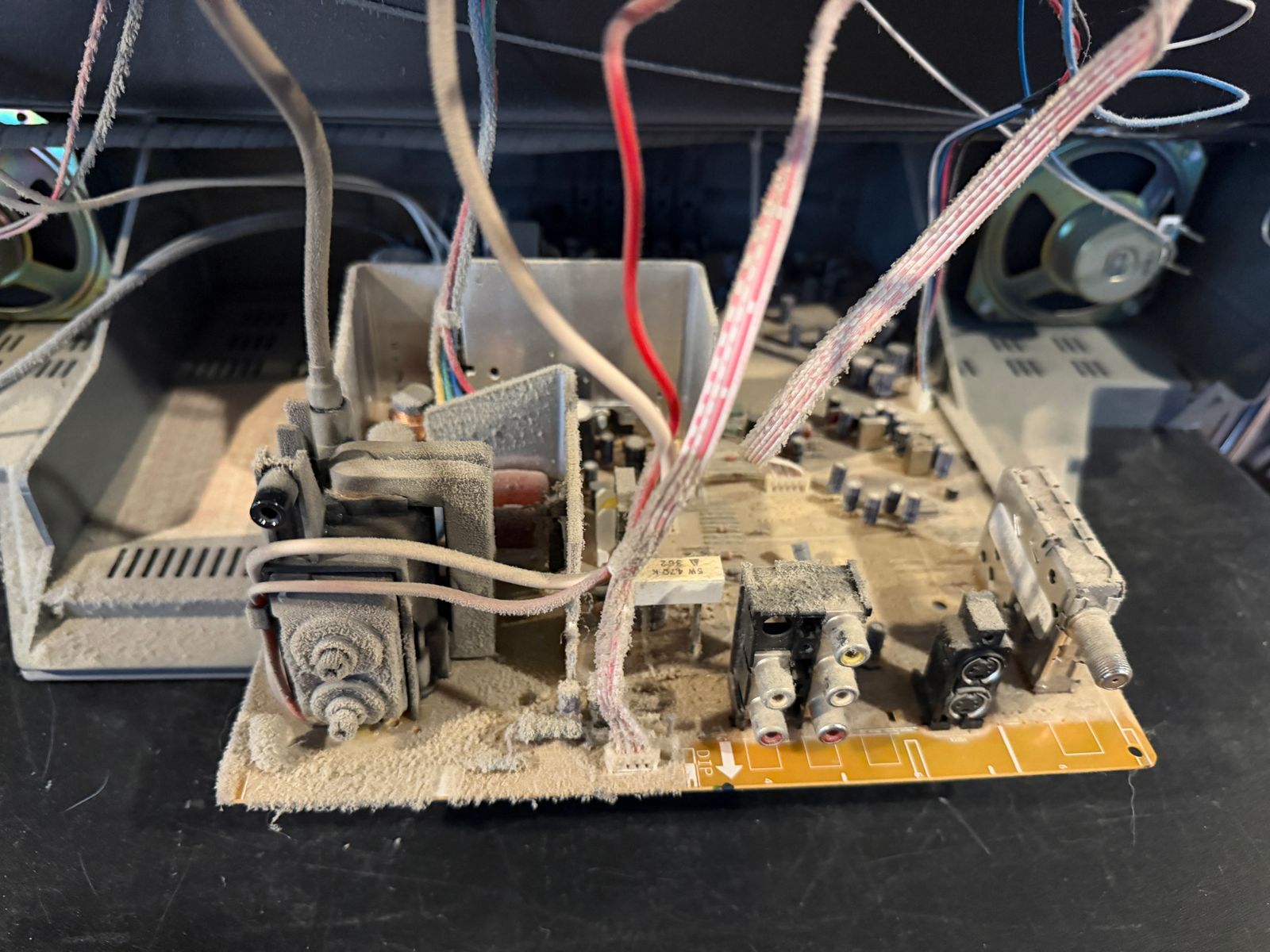

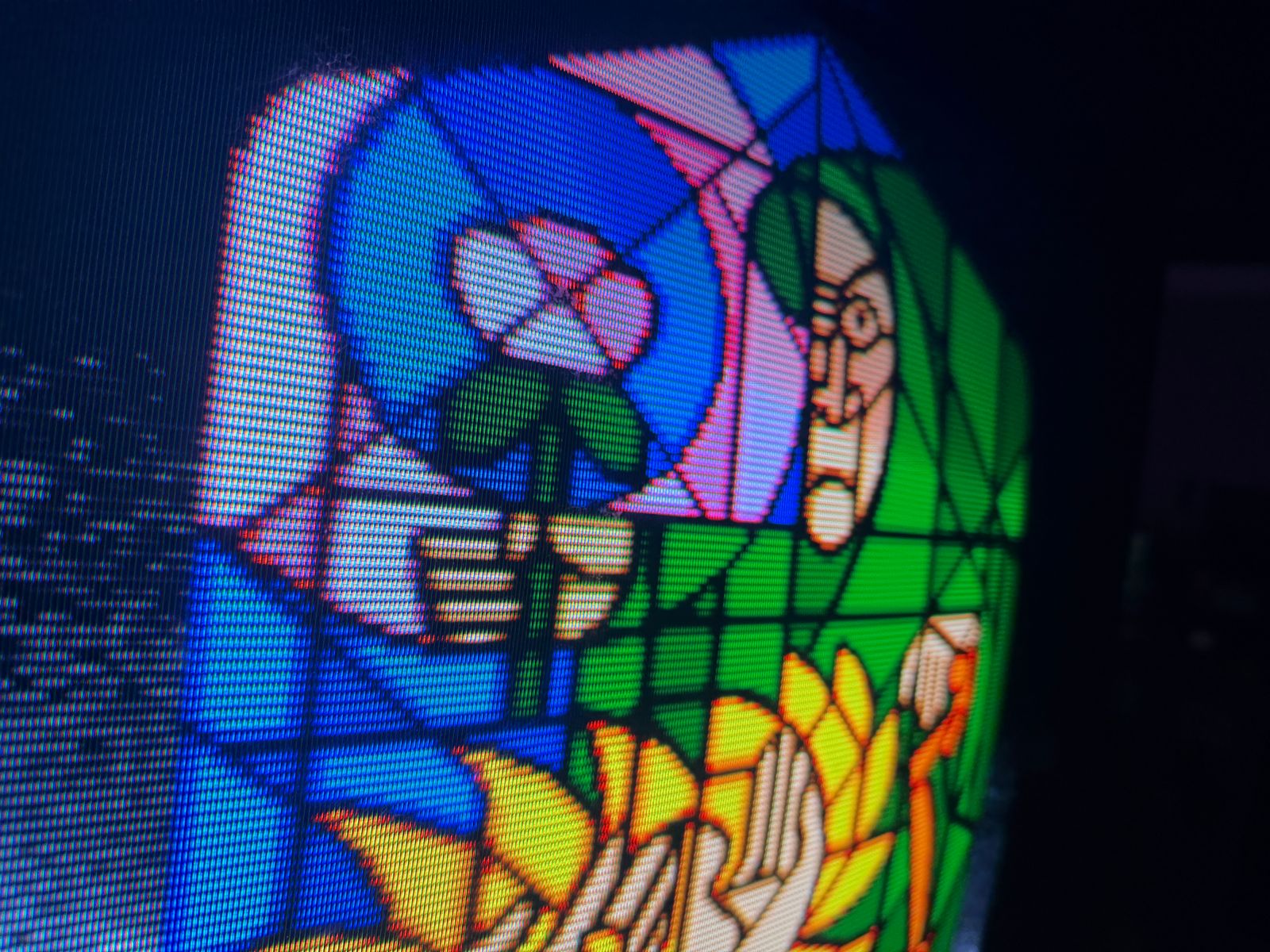

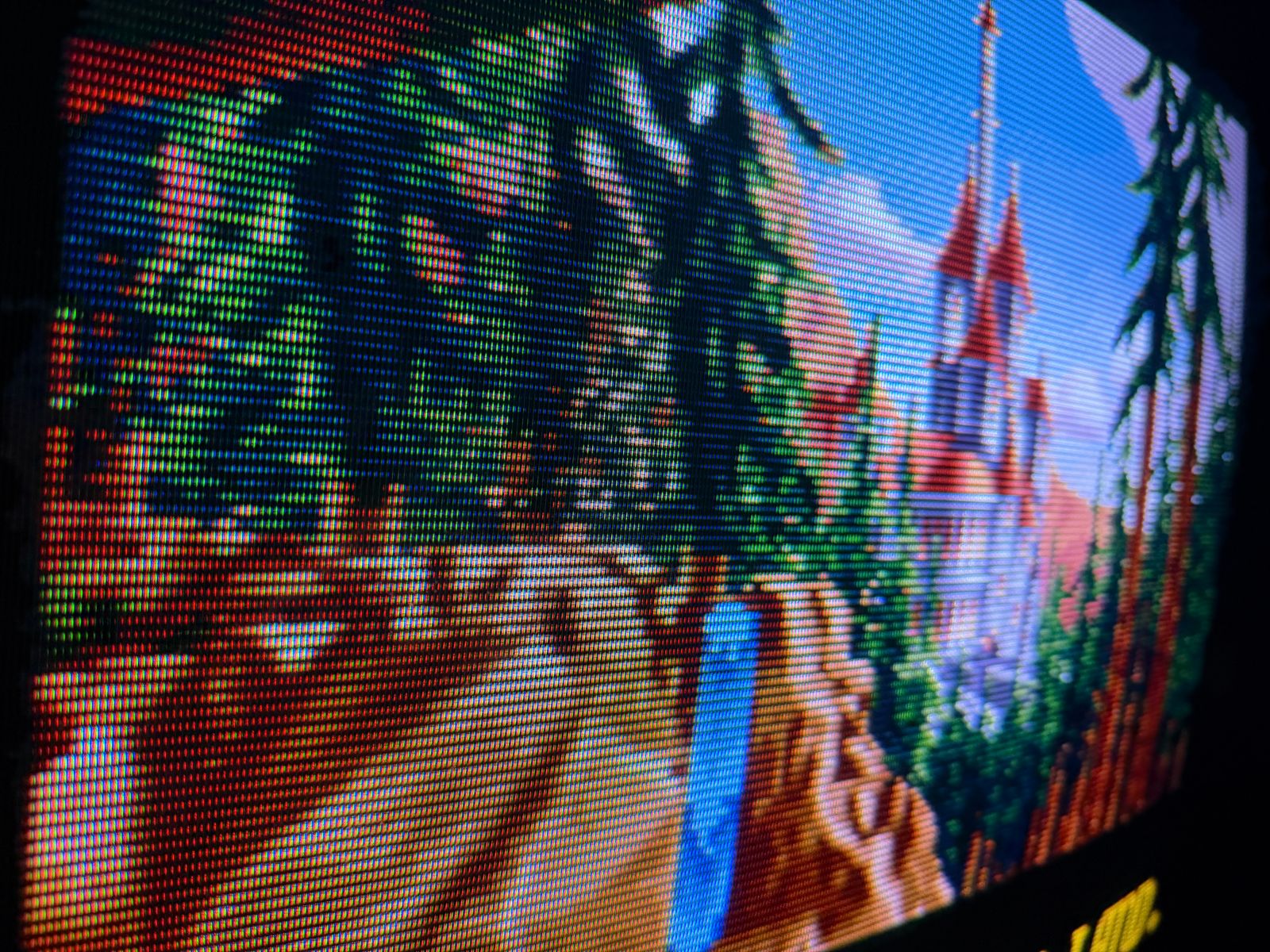

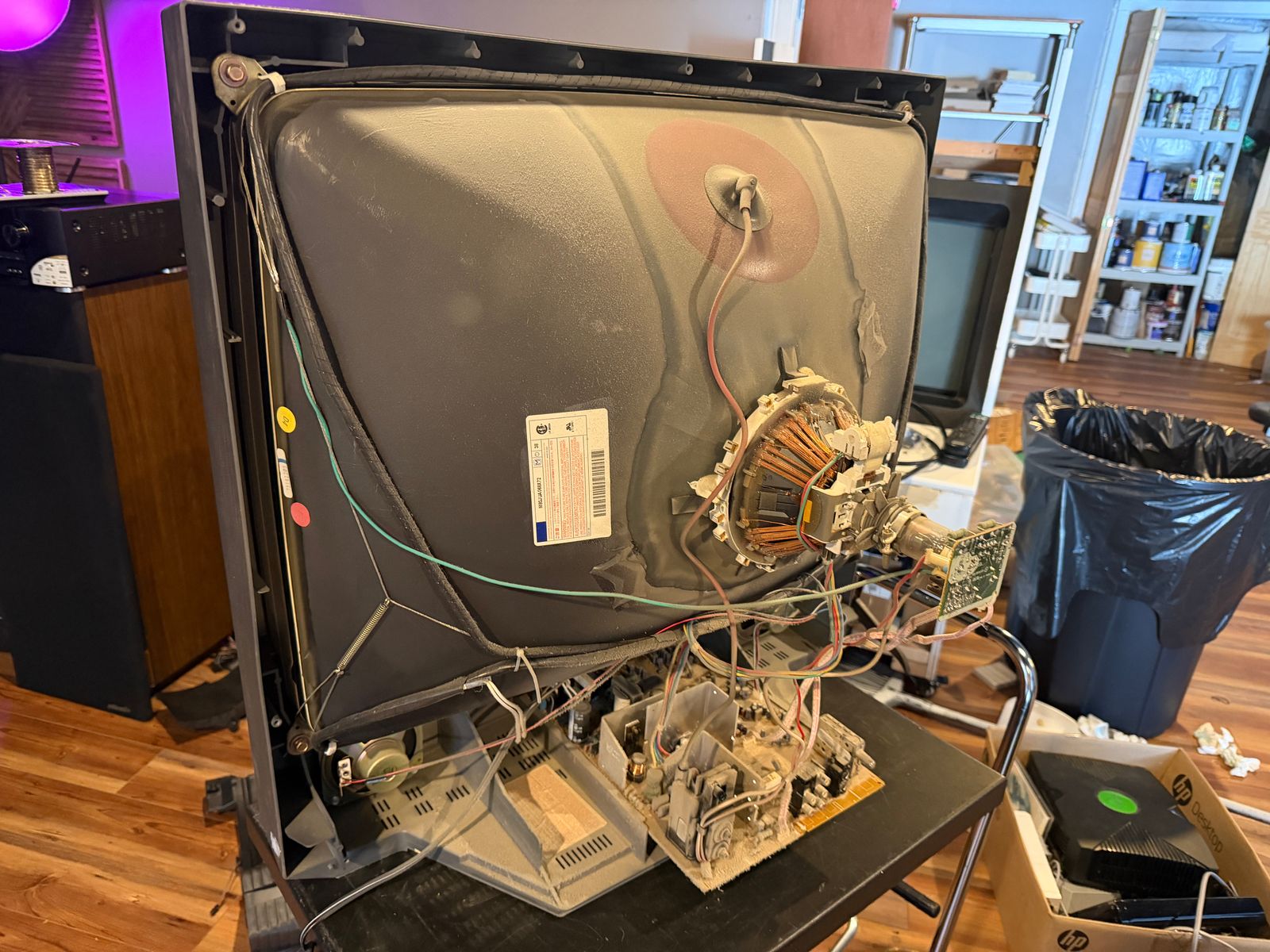

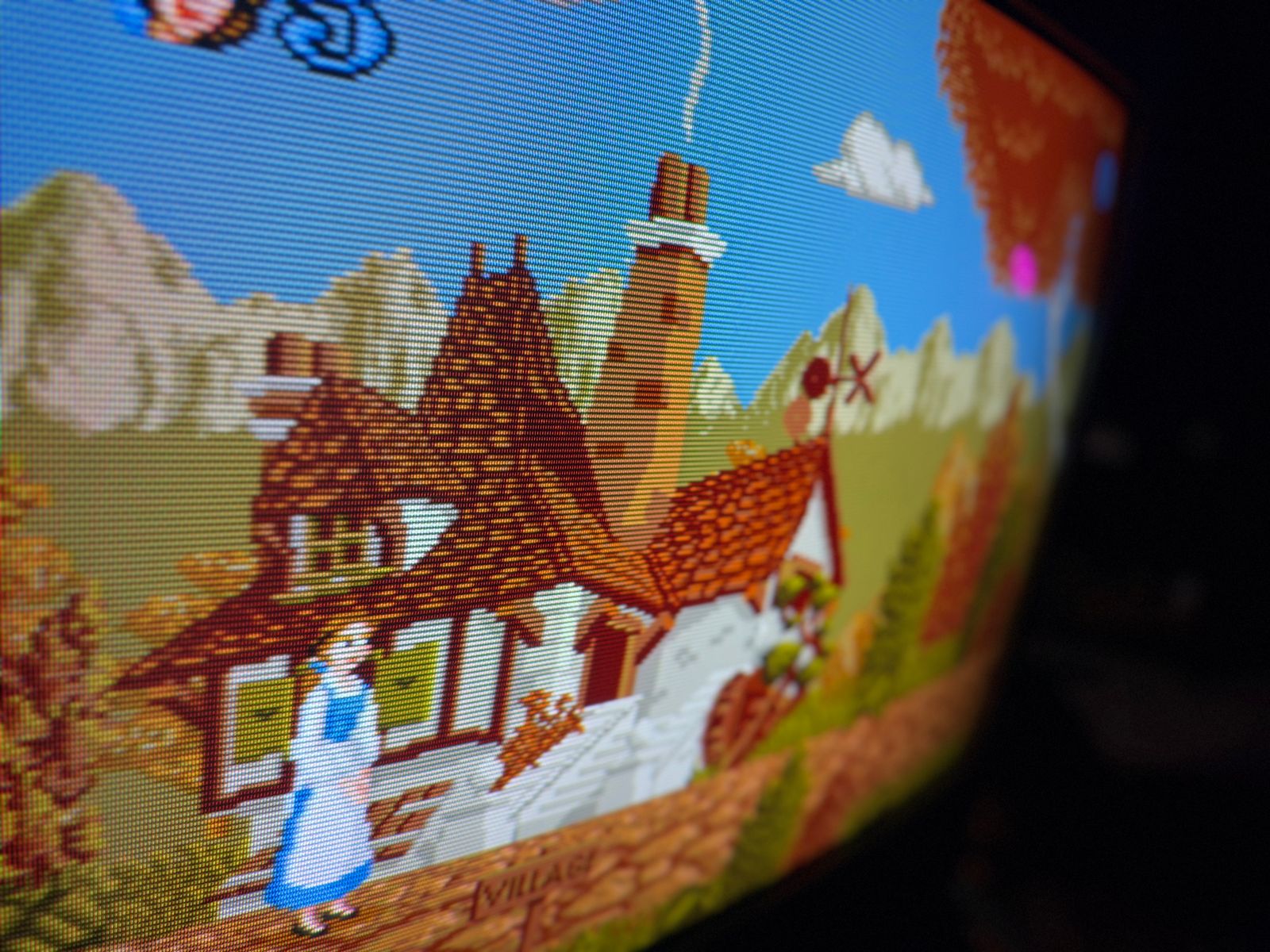

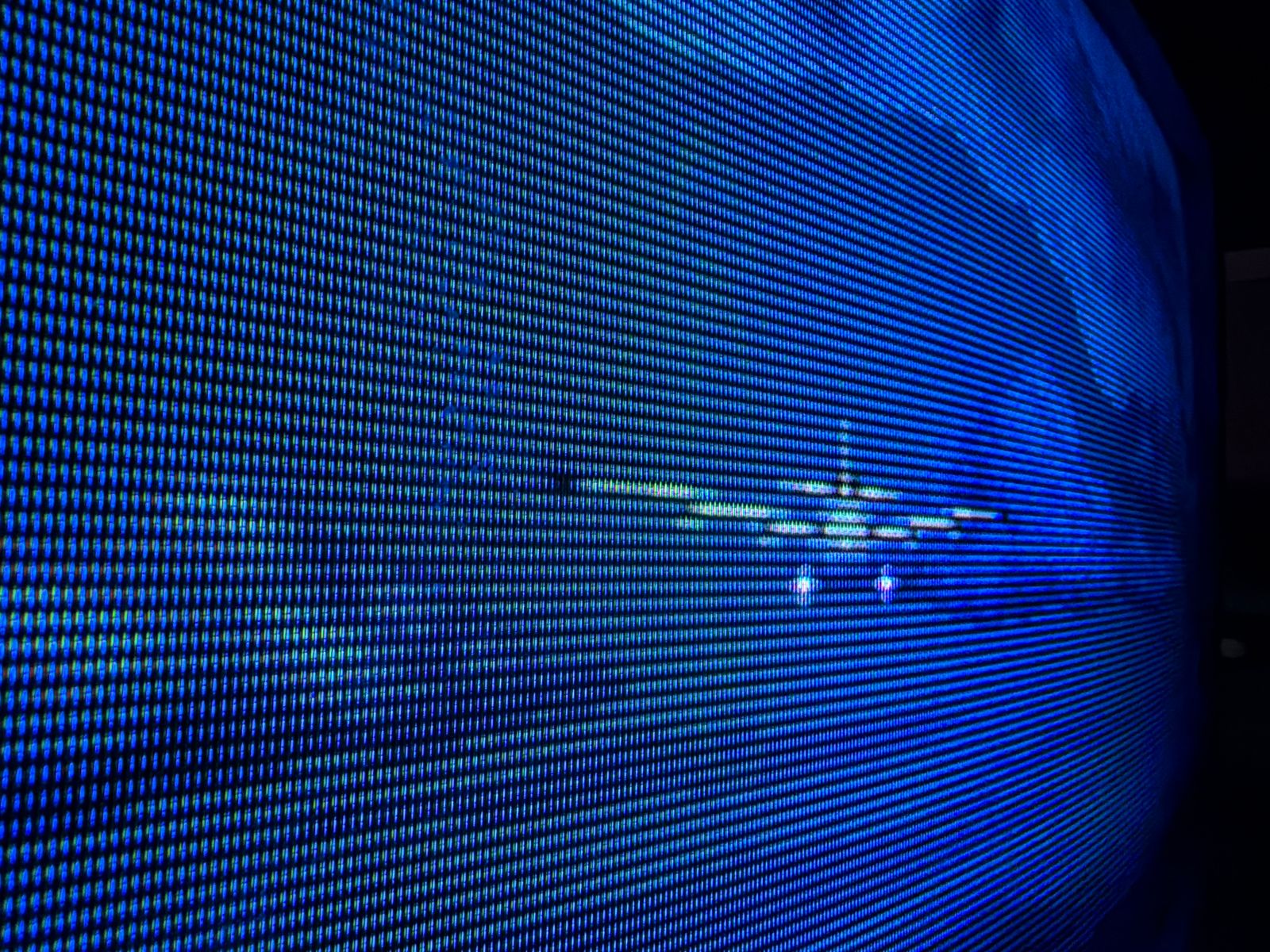

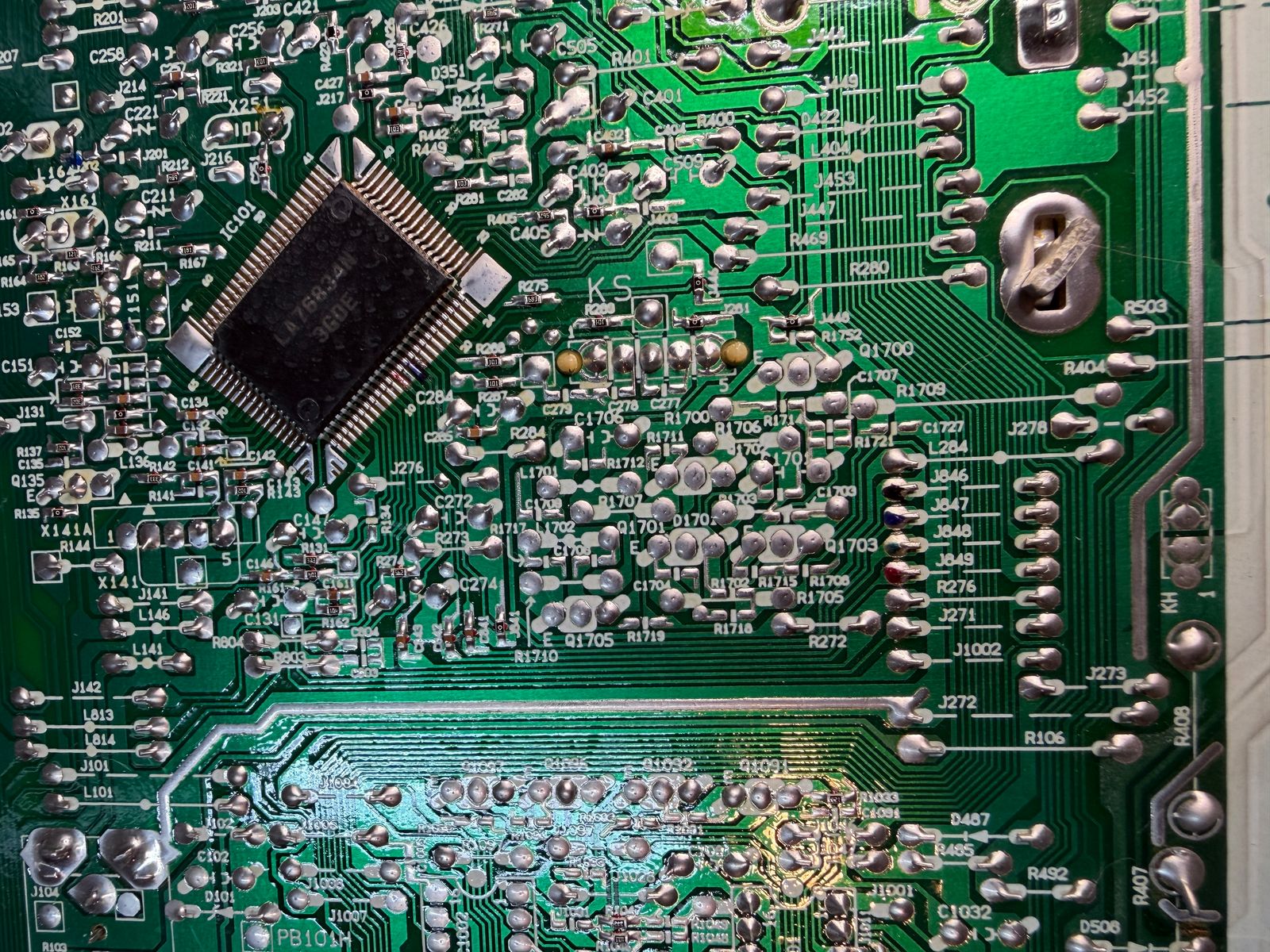

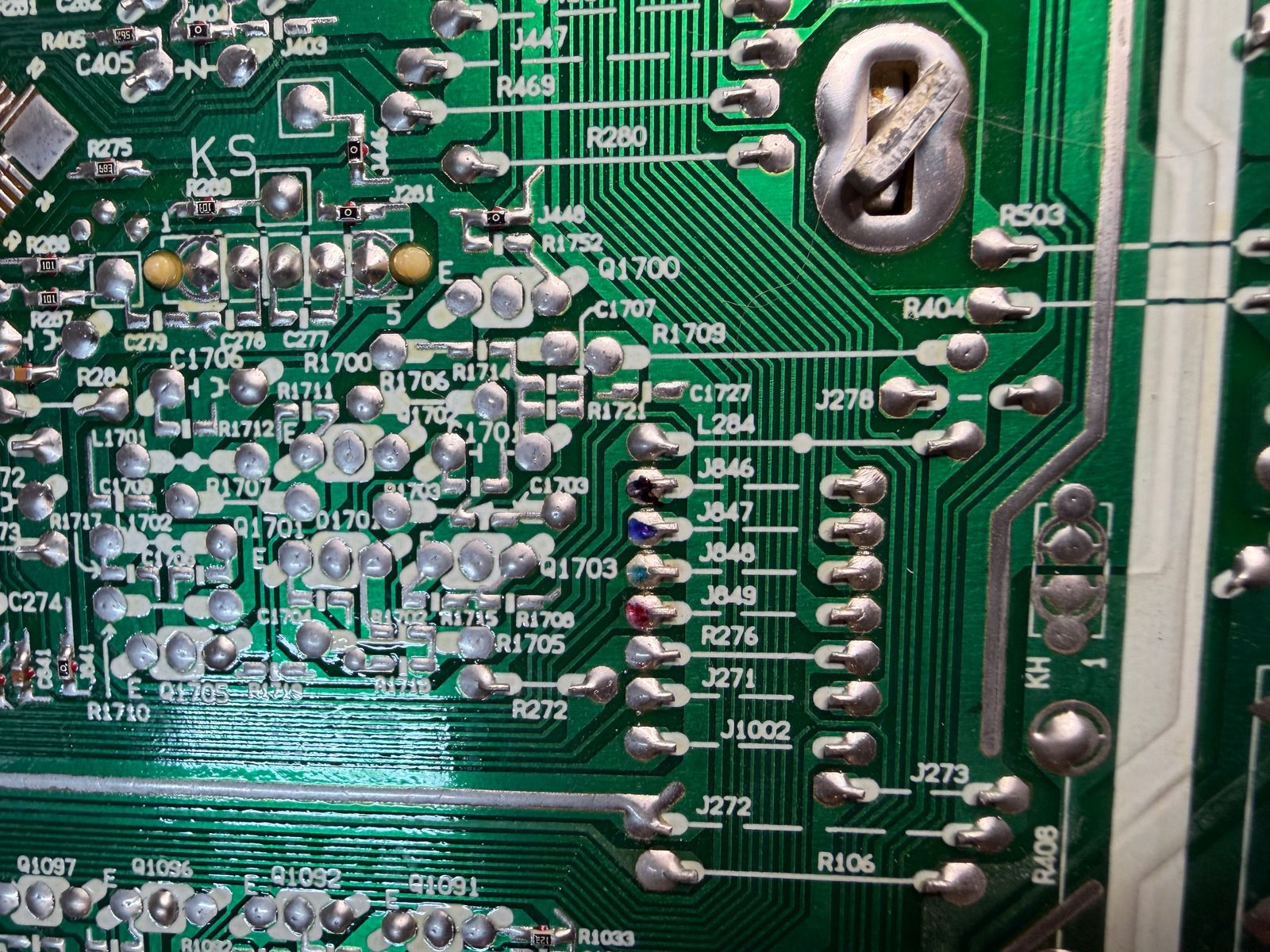

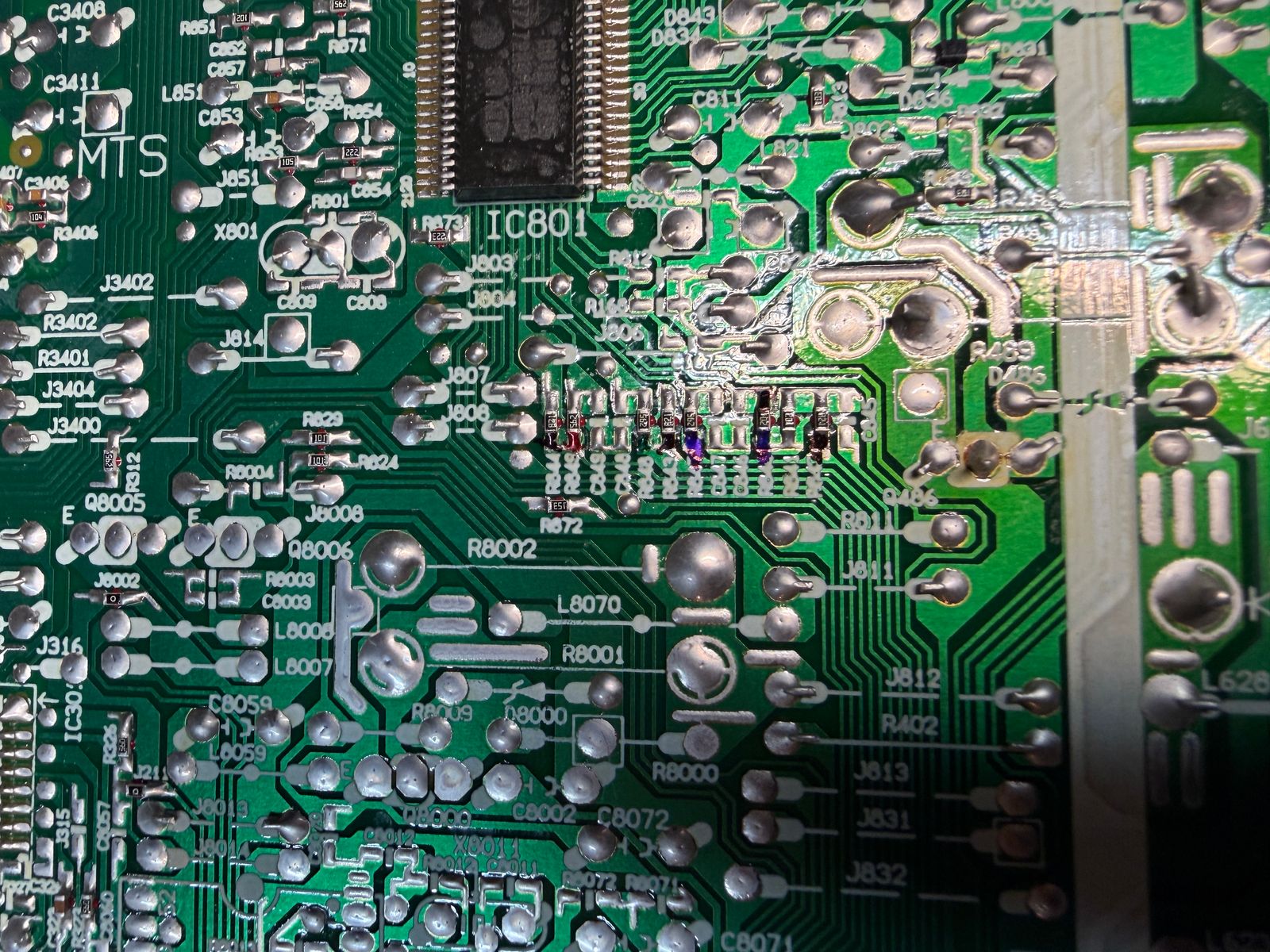

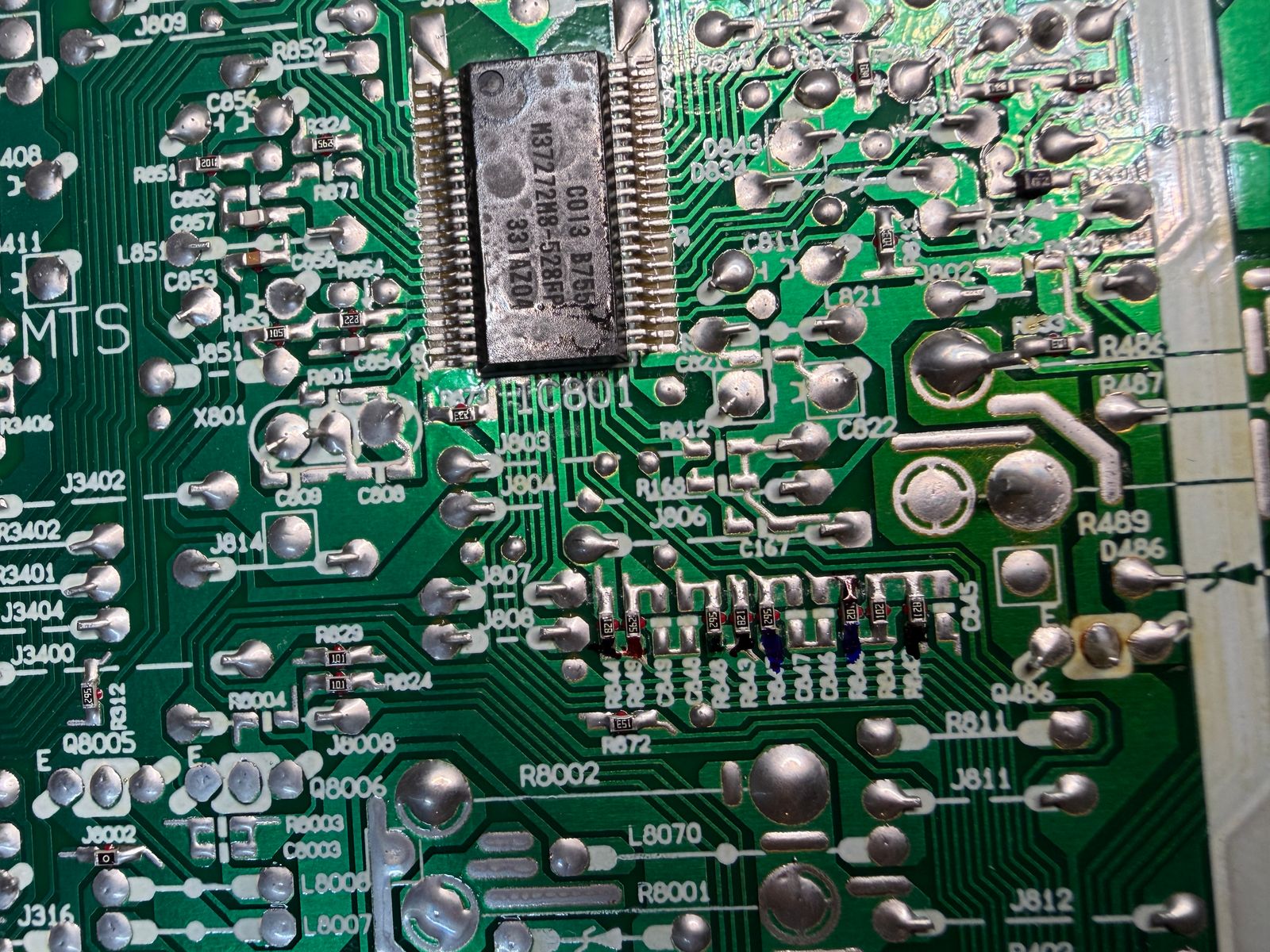

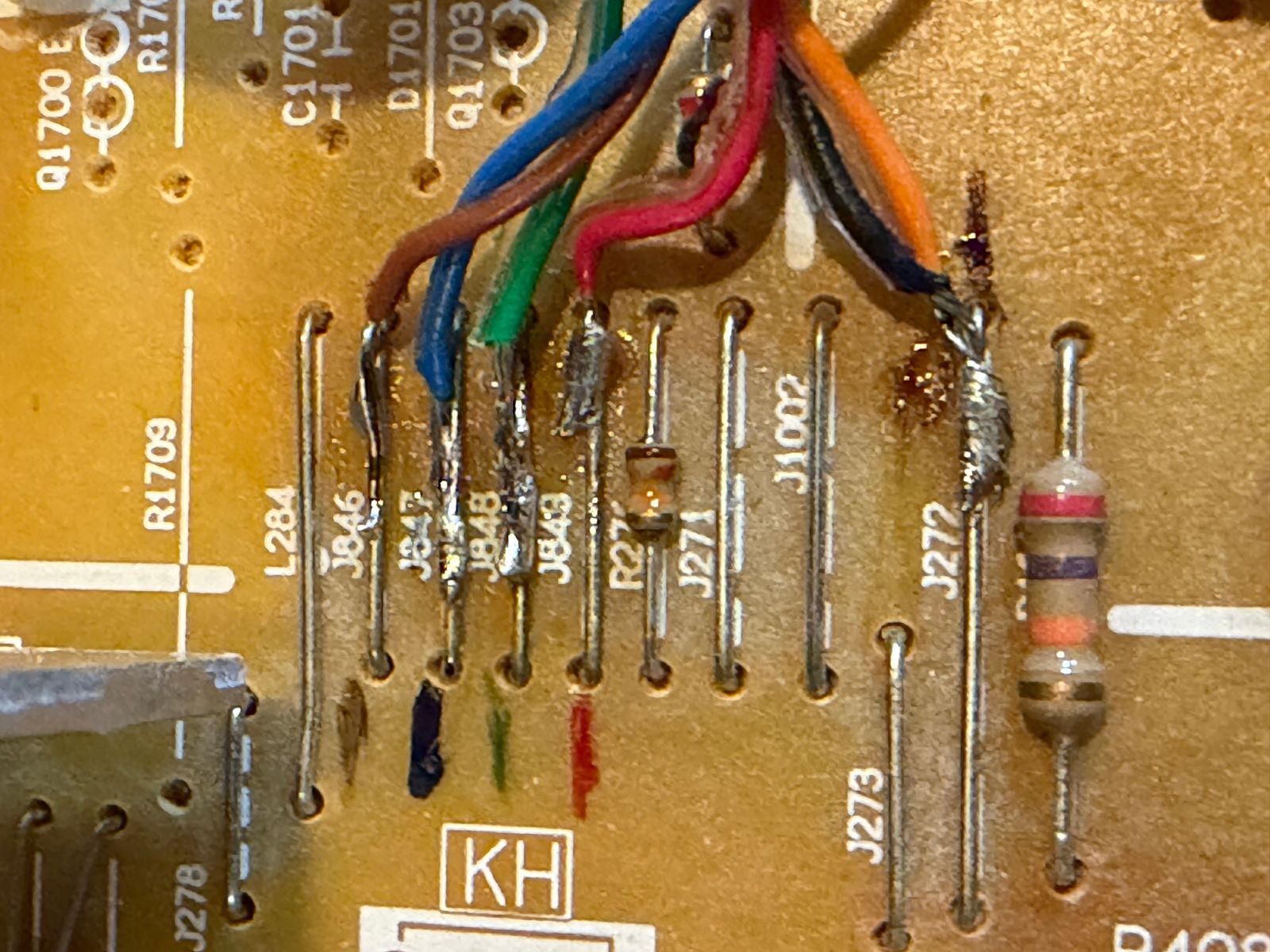

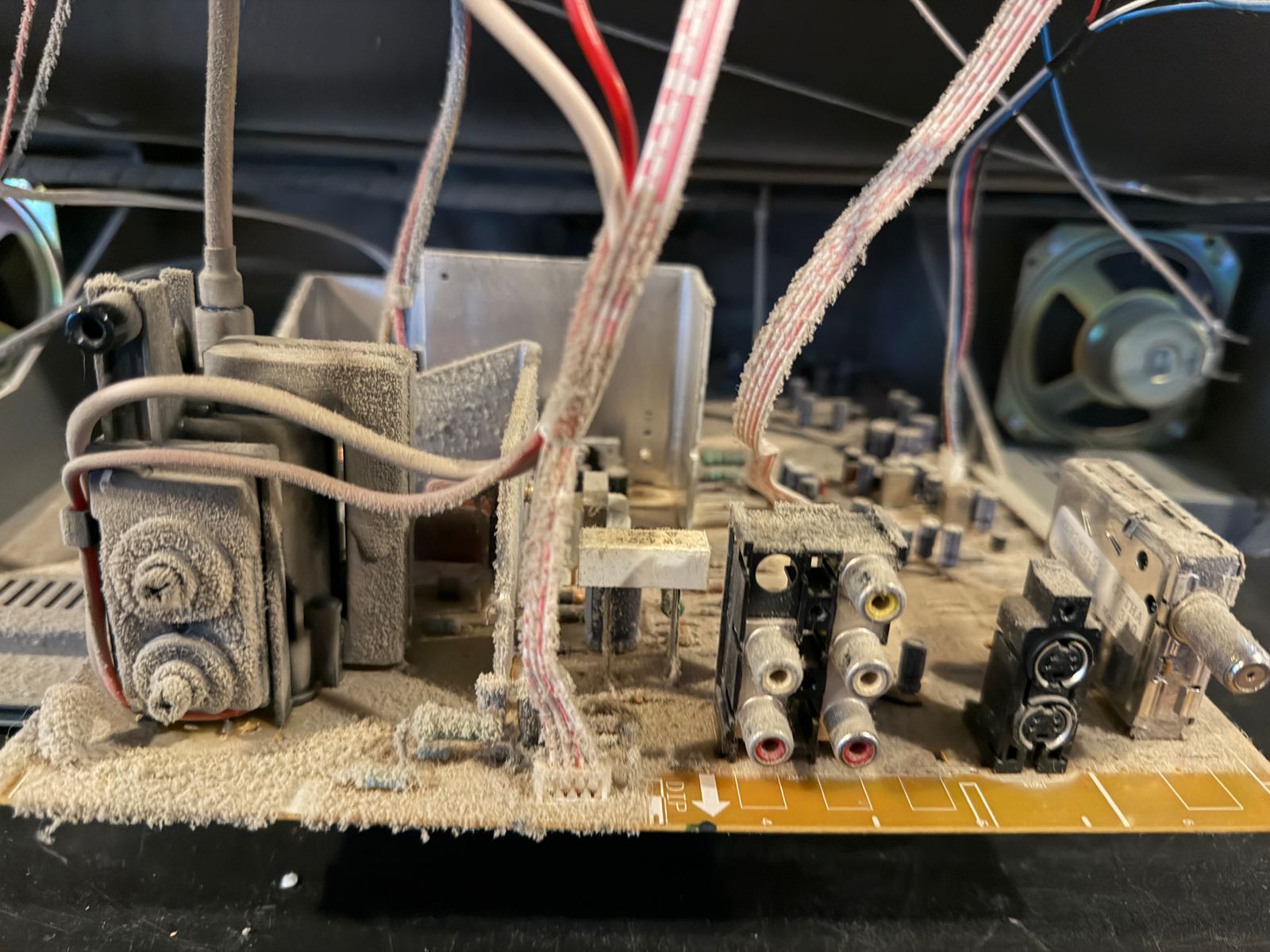

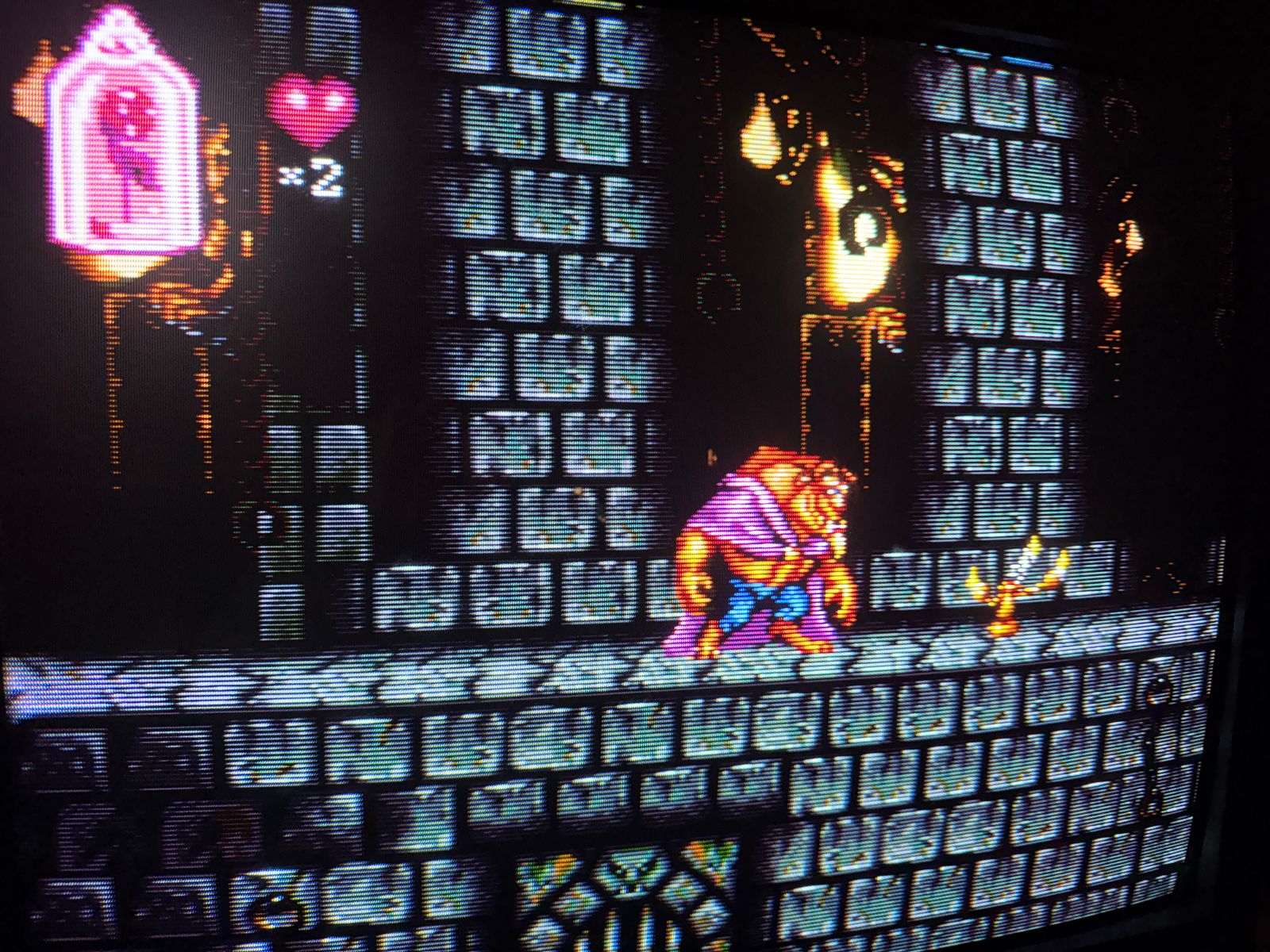

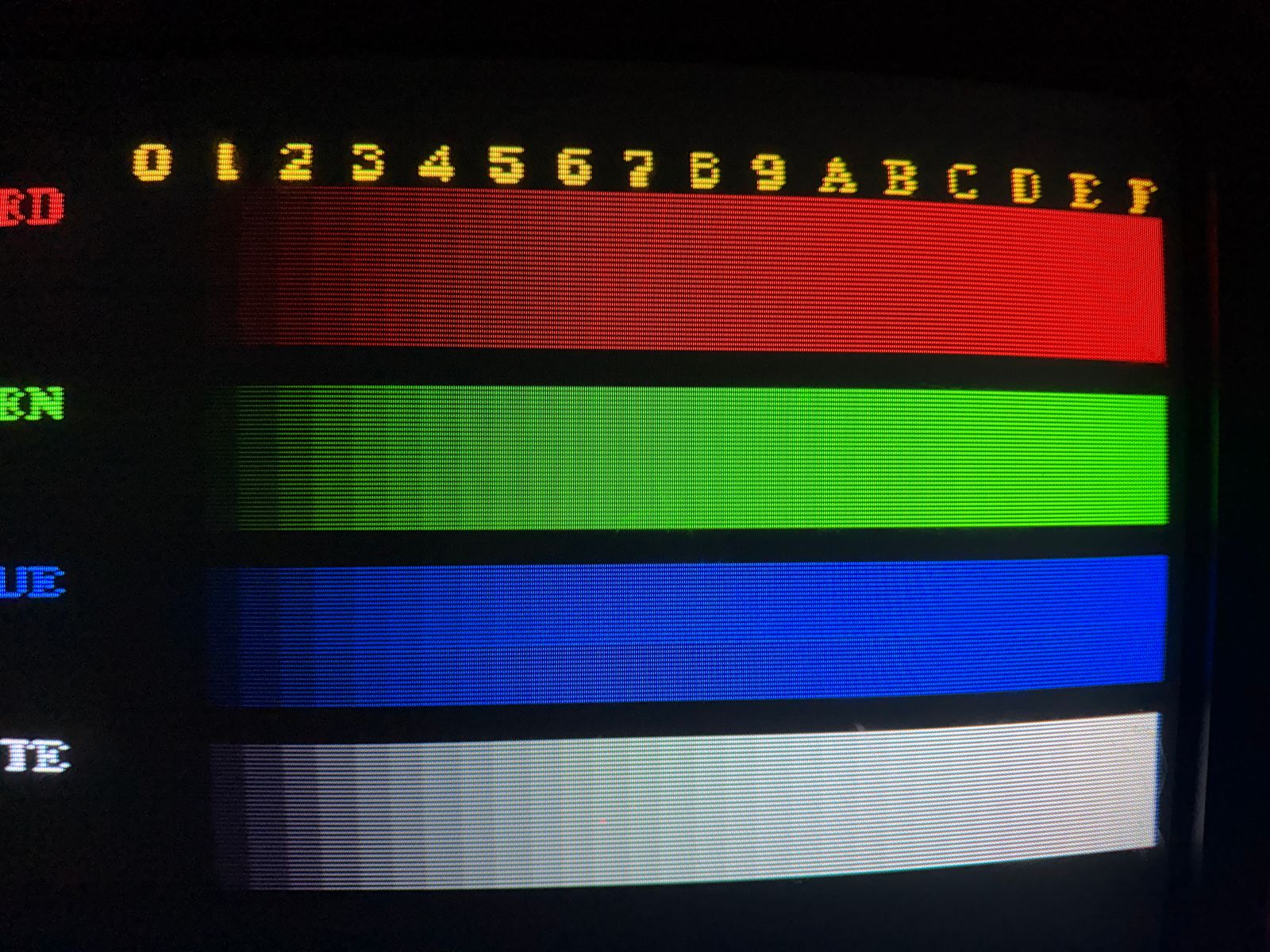

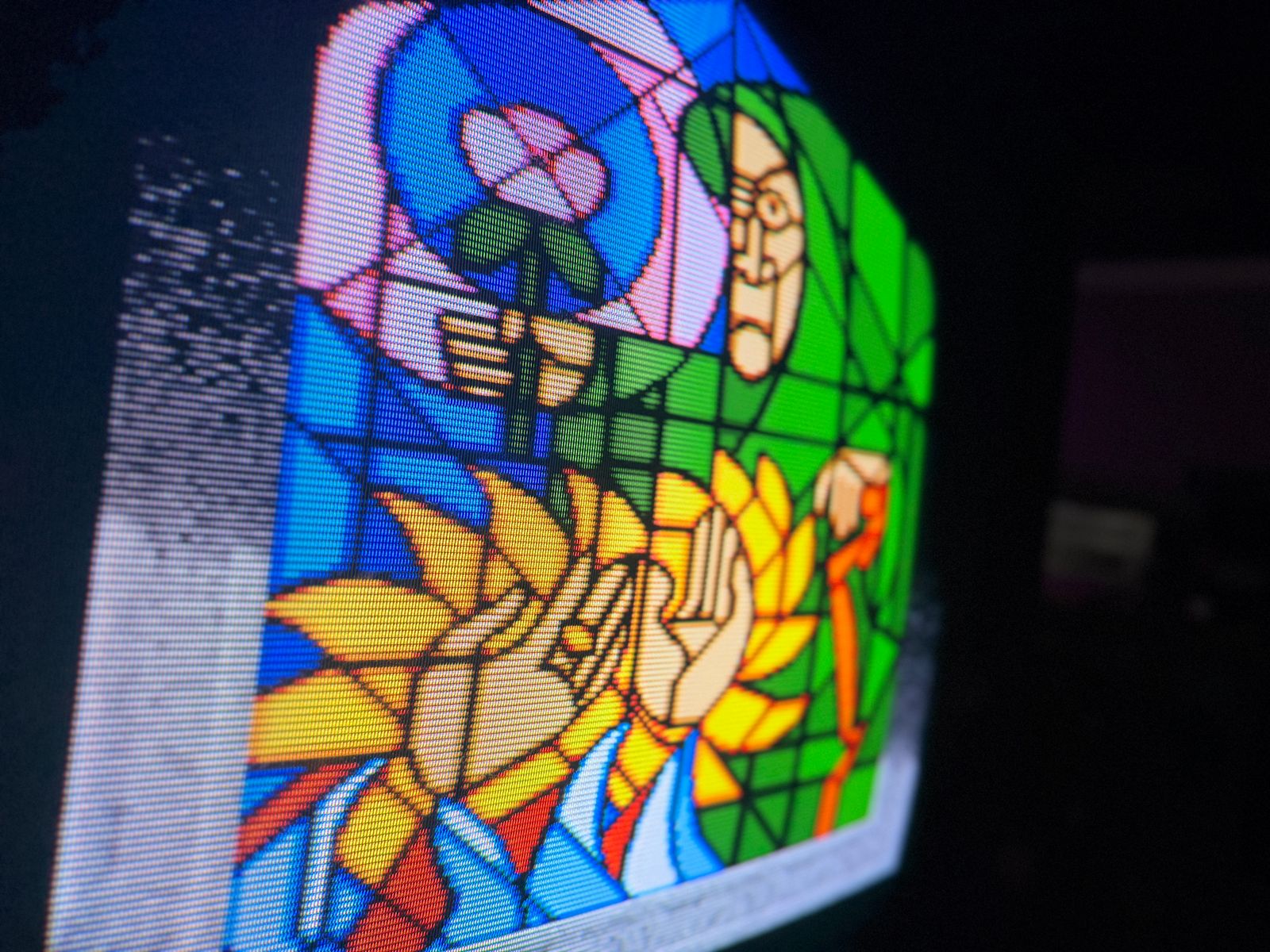

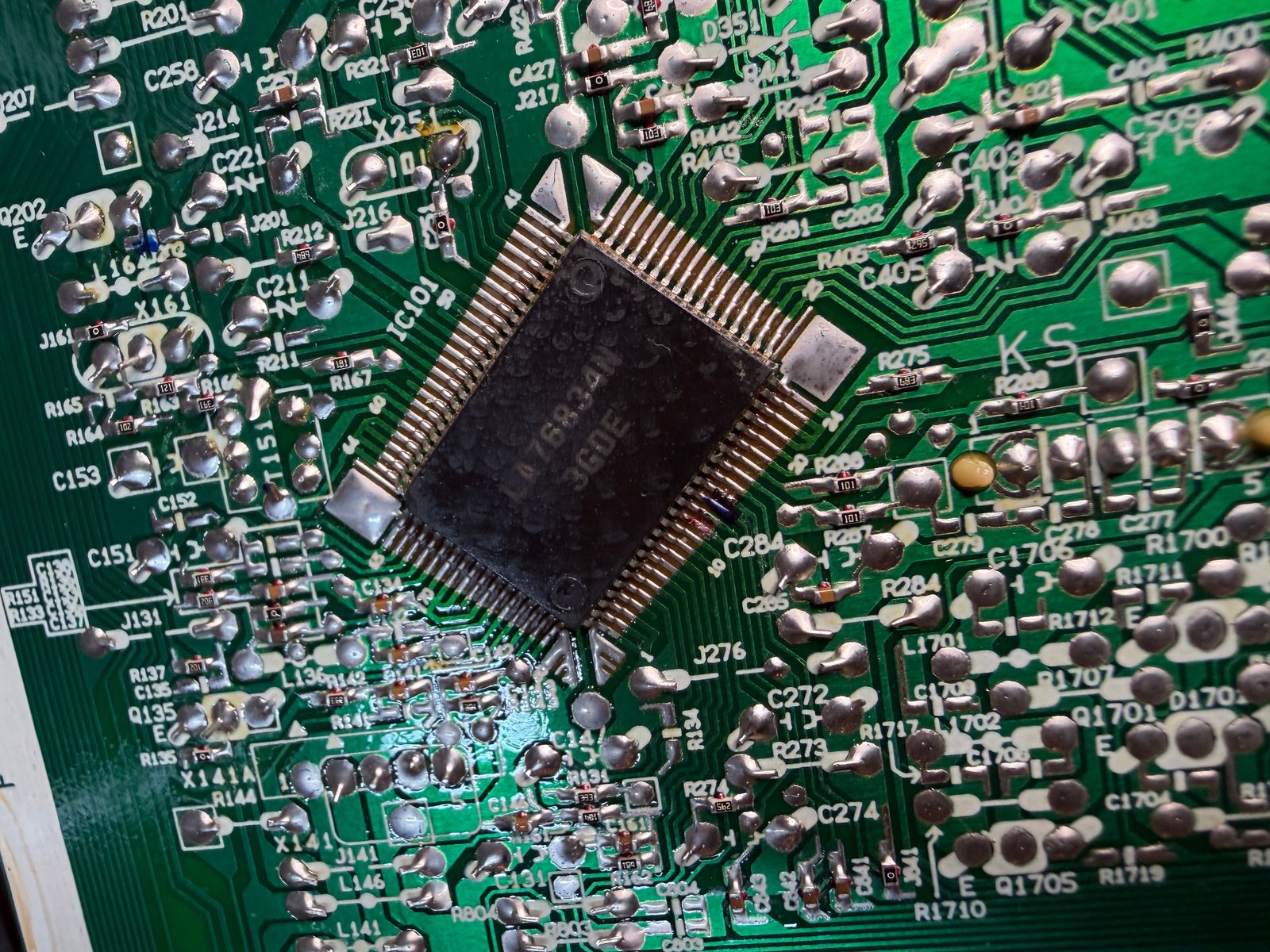

Cleaned and RGB-modded. This one fought me a bit. The jungle chip wanted ~0.3V RGB, not 0.5V or 0.7V. Fix ended up being: - Removed the ground resistors on the OSD lines - Added 330Ω inline resistors, and 120Ω for termination Service menu: hold Menu on the TV while plugging it in. To dial it in: - OSD Brightness (setting #22) down to 1 (so the OSD doesn’t look like a glowing billboard) - Sub Bias all the way up to 127 - Then crank the RGB bias settings until it lands After all that… this thing is ridiculous. Geometry is aligned, it’s near-perfect, the screen is super bright, and the colors absolutely pop.
